SMPS Flyback Transformer DA2062-AL_ For DC-DC converters based

Name: SMPS Flyback Transformer DA2062AL For DCDC converters based
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : DA2062-AL_

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 5000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : 175pcs/Reel

Product name : SMPS Flyback Transformer DA2062-AL_ For DC-DC converters based

Application : DC-DC converters based

input : 36 – 57 V

Core material : Ferrite

Weight : 2.4 g

Ambient temperature : –40°C to +125°C

Contact Now

SMPS Flyback Transformer DA2062-AL_ For DC-DC converters based

Feature:

• Flyback Transformer For DC-DC converters based on Power Integrations DPA423G

• Designed in accordance with Power Integrations Engineering Prototype Report EPR-86
• Operates in continuous conduction mode with 36 – 57 V input
• 1500 Vrms isolation between primary and secondary

Core material Ferrite
Terminations RoHS tin-silver over tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight 2.4 g
Ambient temperature –40°C to +125°C
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Packaging 400 per 13″ reel Plastic tape: 32 mm wide, 0.4 mm thick,
20 mm pocket spacing, 7.6 mm pocket depth

Part

number

Inductance

at 0 Adc

±10% (μH)

Inductance

at Ipk

min (μH)

DCR max

(Ohms)

Leakage

inductance

max (μH)

Turns ratios

Ipk

(A)

Secondary

output

pri : sec

pri : bias

DA2062-AL_

120

0.475 (pins 3 – 1)

0.013 (pins 9 – 6)

0.013 (pins 10 – 7)

0.181 (pins 4 – 5)

3.0

1 : 0.1

1 : 0.4

0.64

3.3 V, 2 A

SMPS Flyback Transformer DA2062-AL_ For DC-DC converters based

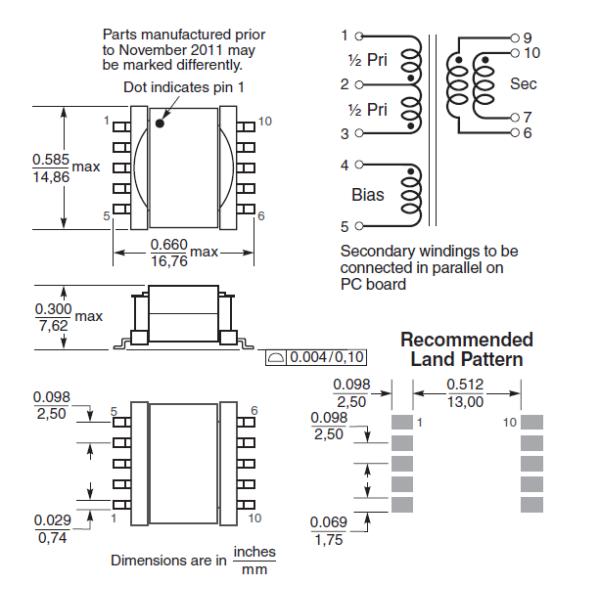

Shape and Dimensions:

SMPS Flyback Transformer DA2062-AL_ For DC-DC converters based

Product picture:
